Flexible and Heat-Resistant Rubber Hoses for Air Condenser Cooling Applications

Share
Categories	Rubber Hoses
Brand	RESRUB rubber and plastic products manufacturer
Product Specifications	JXHT001
Color (General)	Black
Material	EPDM (Ethylene Propylene Diene Monomer)
Length	Custom
Dimension	Φ4*8mm or Custom
Temperature Range	－40°C—125°C
Shore Hardness	65±5 Shore A
Tensile strength	≥7Mpa
Elongation at break	350%
FOB port	Shenzhen, Guangzhou
Terms of Payment	L/C, D/A, D/P, Western Union

Contact Now

Detail Information

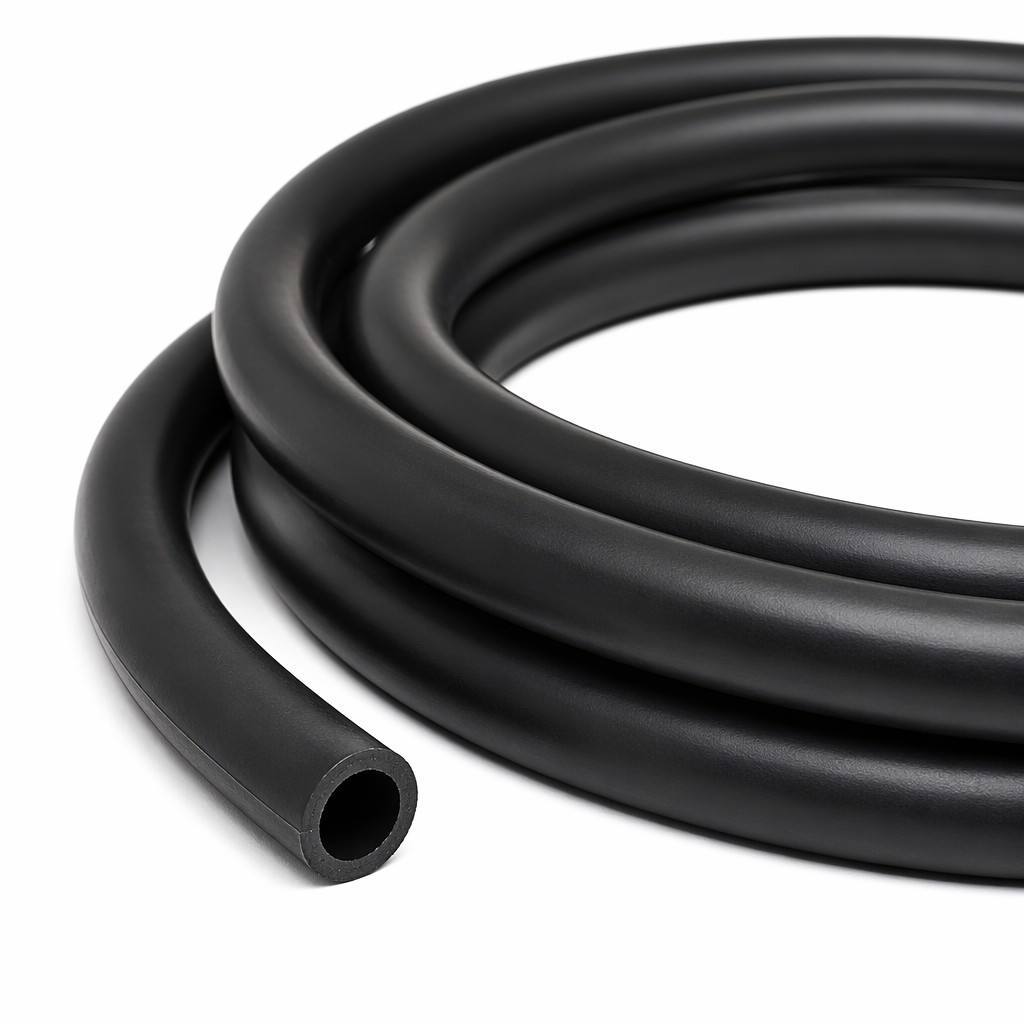

Air Conditioner Condensate Tube Introduction

This air conditioner condensate tube, crafted from high - quality rubber with a braided structure, features excellent flexibility and durability. It effectively channels the condensed water away from your air conditioner, ensuring stable operation and preventing water leakage issues, thus maintaining a clean and dry environment around your AC unit.

Customization Options

RESRUB could produce the tubing with enough length to fully connect any size loop.

And available to custom colors, such as black, white, pink, etc.

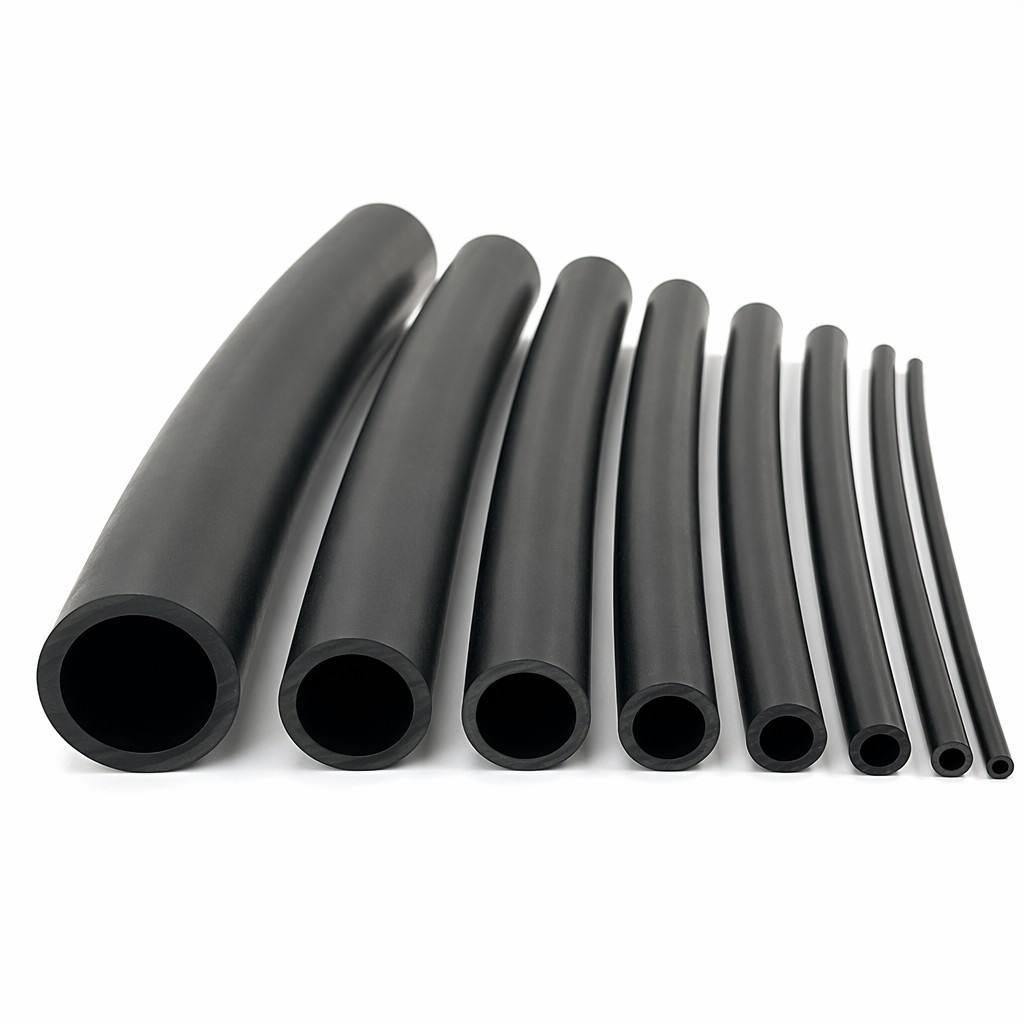

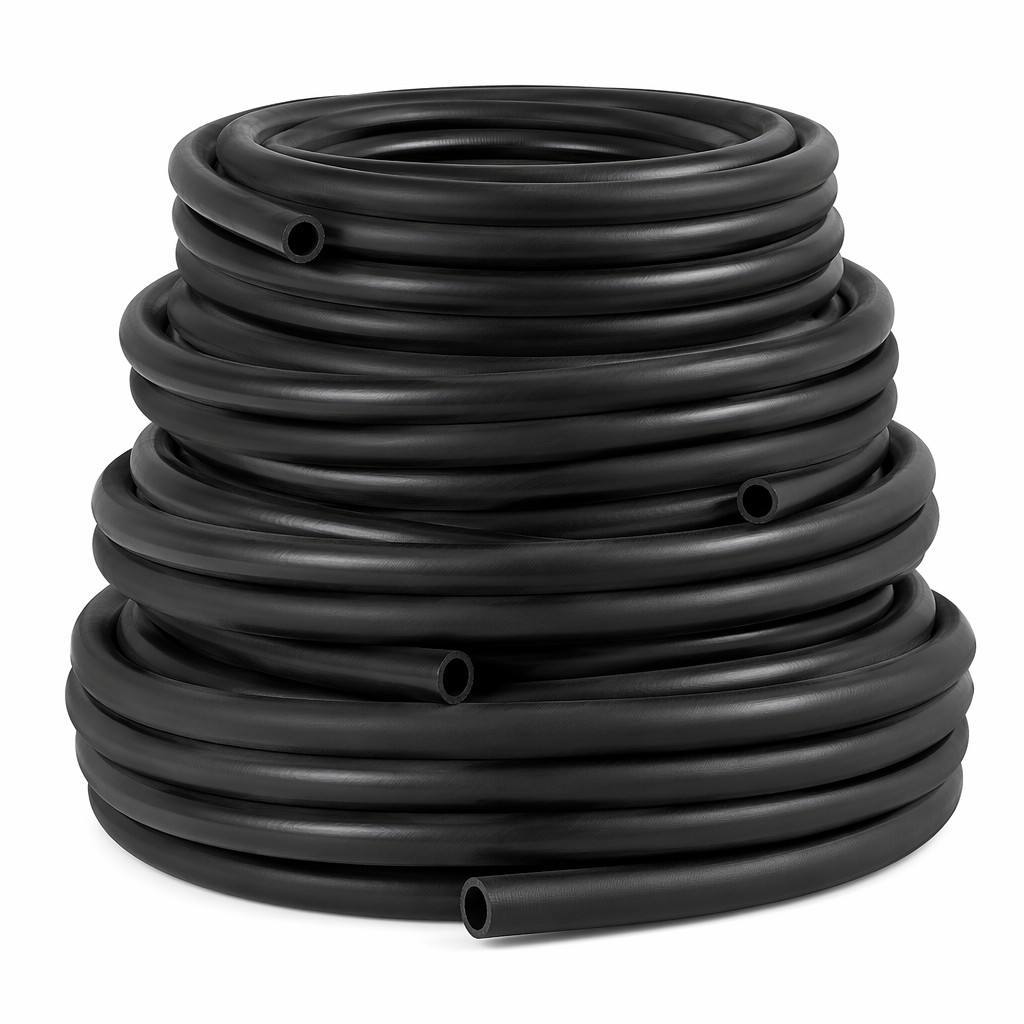

Rubber Hose for Air Conditioner Condensate

Material Advantages

Made from high-quality rubber, it offers excellent durability, flexibility, and resistance to heat, pressure, and chemicals. Its elasticity allows it to adapt to the vehicle's movements and vibrations, ensuring reliable fluid transportation.

Air Conditioner Condensate Tube Properties:

Length	Customizable	OEM/ODM	Available
Logo	Customer Logo Available	Lead Time	10 Days
MOQ	100 Meters	Application	Automotive & Parts

Technical Specification

EPDM rubber (ethylene propylene diene monomer rubber) is a type of synthetic rubber that is used in many applications, with outstanding resistance to oxygen, ozone, and sunlight. Additionally, it also has low temperature flexibility, excellent heat, water and steam resistance. Useful working temperature range is -60°C up to +150°C.

Notes on measuring pipe sizes:

Outer Diameter (OD): The measurement of the tubing's external surface and is typically the larger value.

Inner Diameter (ID): The internal measurement inside the tubing, critical for ensuring proper flow rates.

The most important thing to consider in tubing size is the combination of ID and OD. Selecting the correct measurement unit and ensuring precise compatibility are key to achieving an efficient and leak-proof liquid cooling system. These values also determine the wall thickness of your tubing, which in turn determines its flexibility and resistance to kinking.

What material is the rubber hose for air conditioner condensate made of?

Most air conditioner condensate rubber hoses are made of materials like EPDM (Ethylene - Propylene - Diene Monomer) or PVC (Polyvinyl Chloride).

Can I use a regular rubber hose instead of a hose specifically for air conditioner condensate?

It is not advisable. Regular rubber hoses may not be designed to withstand the continuous exposure to moisture, warm temperatures, and potential chemical contaminants in the condensate water. Air conditioner condensate hoses are engineered with materials and properties that make them resistant to these factors, ensuring long - term reliability and preventing leaks, corrosion, or degradation.

What are the signs that my air conditioner condensate rubber hose needs replacement?

Look for visible cracks on the surface of the hose. If you notice water dripping from the hose at points other than the connection ends, it is a clear sign of a leak, indicating that the hose may be damaged. Also, if the hose has become overly soft or brittle, it has likely lost its structural integrity and should be replaced.

Item	Rubber Hose for Air Conditioner Condensate
Item No.	P2086401-Tube
Size	φ8.0*φ4.0mm or customize
Hardness	72±3 Shore A or customize
Color	Black, pink or customize any color
Density	1.35g/cm³
Temperature resistant	－40°C—125°C
Tensile strength	≥7Mpa
Elongation at break	350%
Lead time	3 days for sample, 15 days for batch order
Packing method	Carton/ PE bag / Wooden pallet / Paper roll
Price tip	The price above is for your reference, final actual price depends on your design,material request, surface treatment, order quantity, package request, etc.
