High-Performance Flexible Rubber Braided Hoses for CPU Cooling

High-Performance Flexible Rubber Braided Hoses for CPU Cooling
High-Performance Flexible Rubber Braided Hoses for CPU CoolingHigh-Performance Flexible Rubber Braided Hoses for CPU CoolingHigh-Performance Flexible Rubber Braided Hoses for CPU CoolingHigh-Performance Flexible Rubber Braided Hoses for CPU CoolingHigh-Performance Flexible Rubber Braided Hoses for CPU Cooling
CategoriesRubber Hose for Server Cooling
Trademark/BrandRESRUB rubber and plastic products manufacturer
ModelNO.F20231025
Color (General)Black
MaterialEPDM (Ethylene Propylene Diene Monomer)
LengthCustom
Temperature Range－45°C—125°C
Shore Hardness80±5 Shore A
Tensile strength10Mpa
Elongation at break350%
FOB portShenzhen, Guangzhou
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdf
Update TimeOct 31,2025
Contact Now
Detail Information
Rubber Hose for Server Cooling introduction
Rubber Hose for Server Cooling

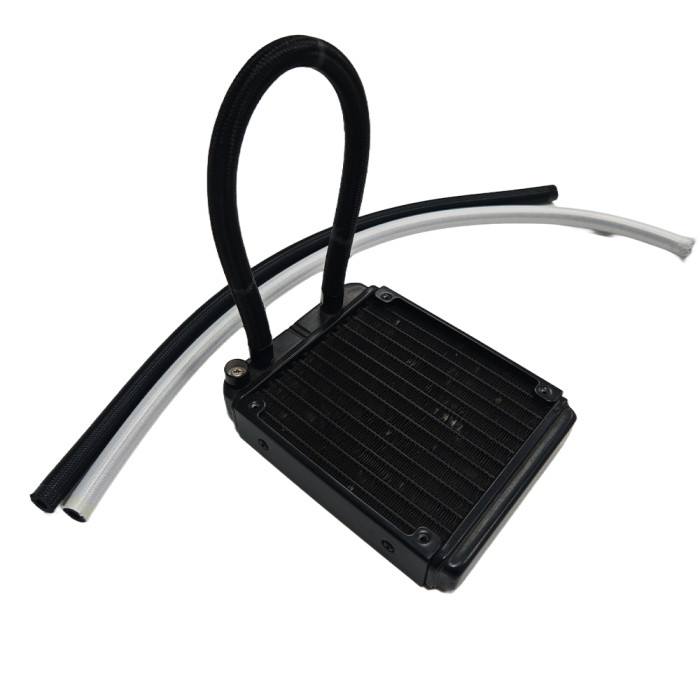

Durable, heat-resistant braided EPDM rubber tubing for PC water liquid cooling systems, offering excellent flexibility and low evaporation rates.
Further DIY your gaming PC builds using outer layer braided EPDM tubing, unlike any other hose, it offers a unique, sturdy, and robust aesthetic.
Black EPDM material, withstanding temperatures between -45℃ and +125℃, UV resistant.
Customization Options

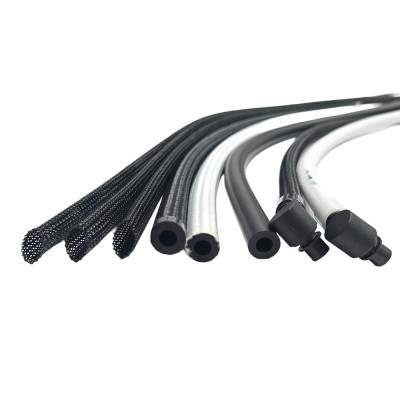

RESRUB could produce the tubing with enough length to fully connect any size loop.
And available to custom colors, such as black, white, pink, etc.
Rubber Hose for Server Cooling
Rubber Hose for Server Cooling
Used In

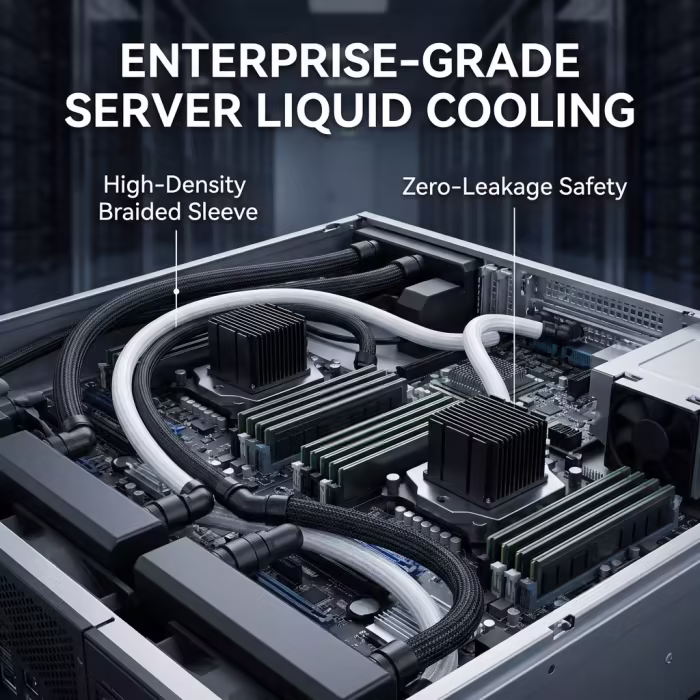

These tubes are essential components for server cooling systems. Made from high-quality materials, such as carbon fiber or other durable substances, they are designed to efficiently transfer heat away from the server's critical components. The excellent thermal conductivity and low weight of these tubes ensure optimal heat dissipation while minimizing the overall load on the server infrastructure

Rubber Liquid Cooling Hose Properties:
Length
Customizable
OEM/ODM
Available
Reinforcement
Outer Layer Polyester Braiding for Enhanced Strength
Lead Time
10 Days
MOQ
100 Meters
Application
Gaming Case
Technical Specification
EPDM rubber (ethylene propylene diene monomer rubber) is a type of synthetic rubber that is used in many applications, with outstanding resistance to oxygen, ozone, and sunlight. Additionally, it also has low temperature flexibility, excellent heat, water and steam resistance. Useful working temperature range is -60°C up to +150°C.
Rubber Hose for Server Cooling
Notes on measuring pipe sizes:
Rubber Hose for Server Cooling
Outer Diameter (OD): The measurement of the tubing's external surface and is typically the larger value.
Inner Diameter (ID): The internal measurement inside the tubing, critical for ensuring proper flow rates.
The most important thing to consider in tubing size is the combination of ID and OD. Selecting the correct measurement unit and ensuring precise compatibility are key to achieving an efficient and leak-proof liquid cooling system. These values also determine the wall thickness of your tubing, which in turn determines its flexibility and resistance to kinking.
What size tubing for liquid cooling?
The most common inner diameter(ID) sizes are 1/4" and 2/9". The outer diameter(OD) of tubing is the measurement between the outer wall of the outer wall of the opposite side. Common OD  sizes for PC tubing are 1/2", 3/7", and 4/9". The wall thickiness of PC cooler tubing is the difference between the OD and ID.
what is coolant tubing made of?
EPDM is the typical tube material because of its strong resistance to heat, hot water, and eth ylene glycol, the most common antifreeze. In some cases, SBR or NBR may be used instead.
Can you use silicone tubing for coolant?
As such, silicone hose could be used in water coolant systems. However, EPDM tubber hoses are also suitable for a variety of water coolant applications and can be more cost-effective than other materials when large quantities are required.
