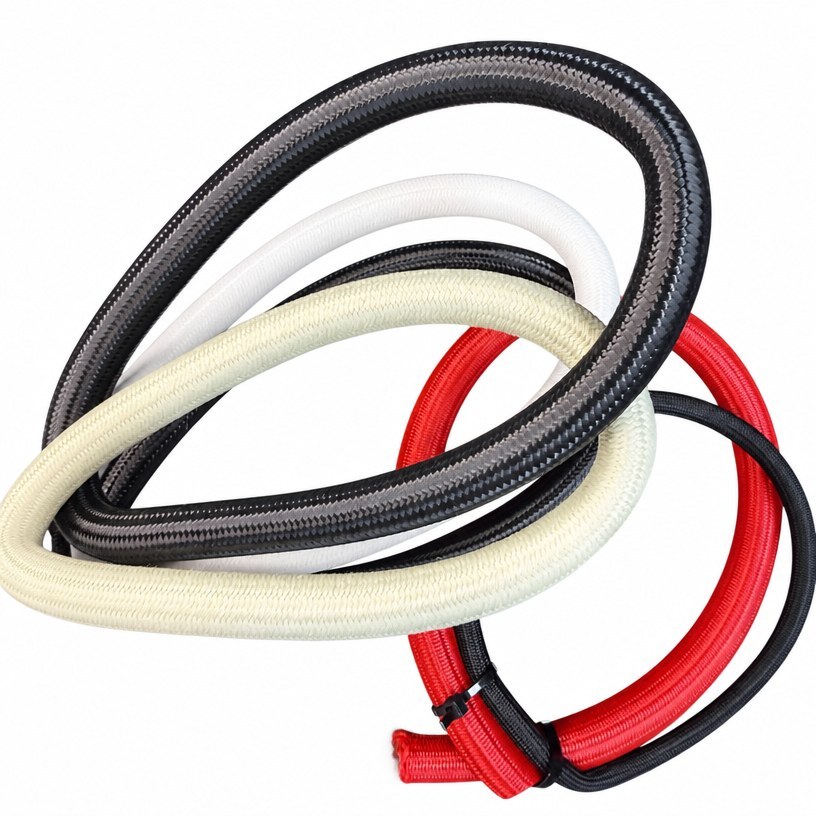

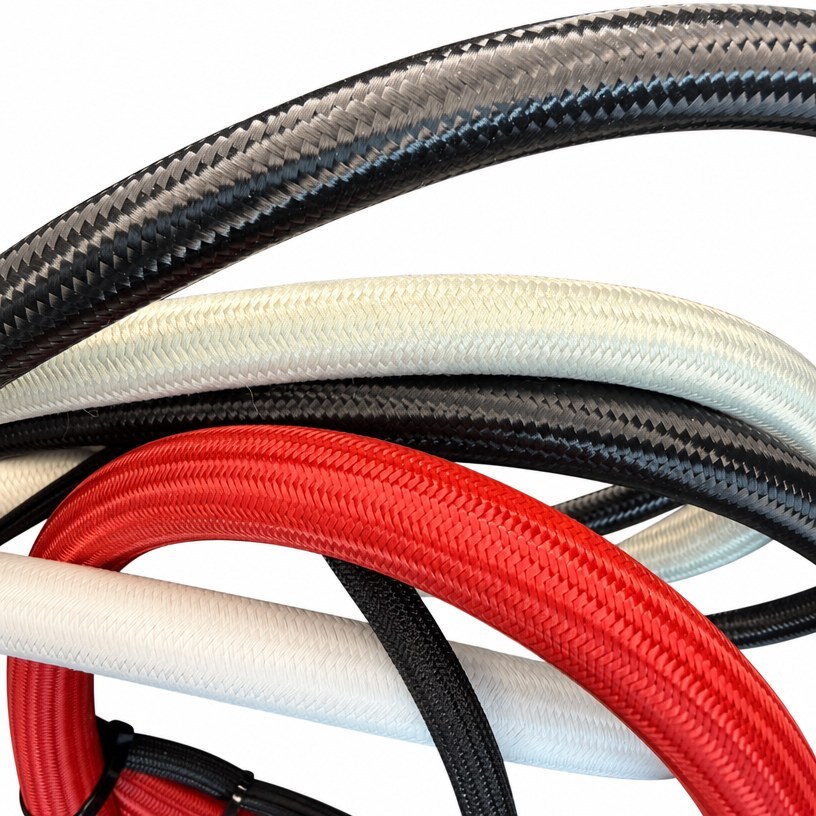

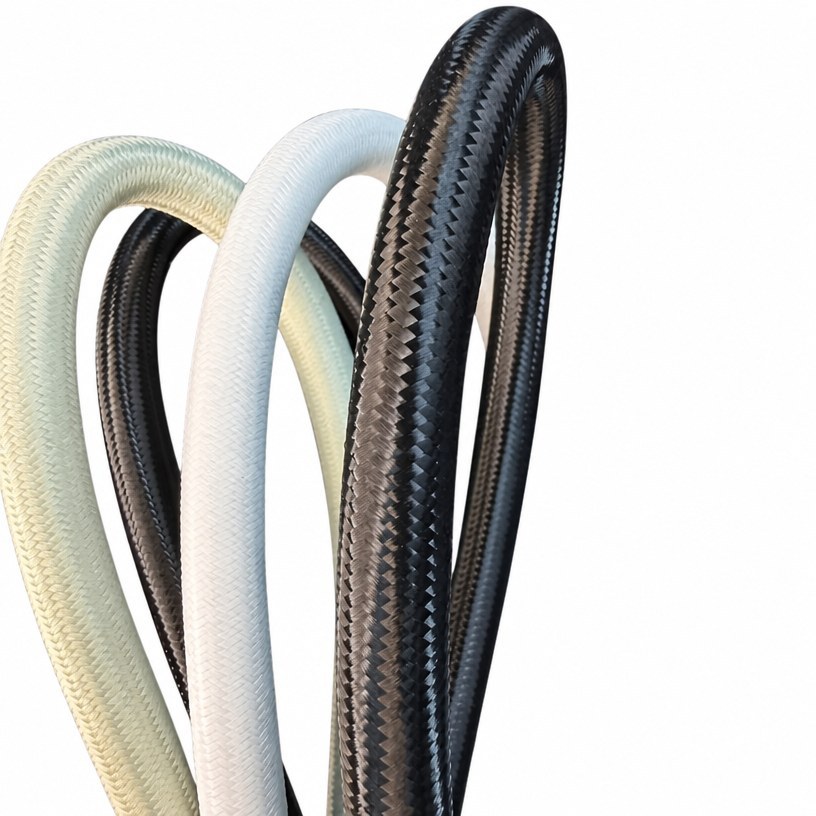

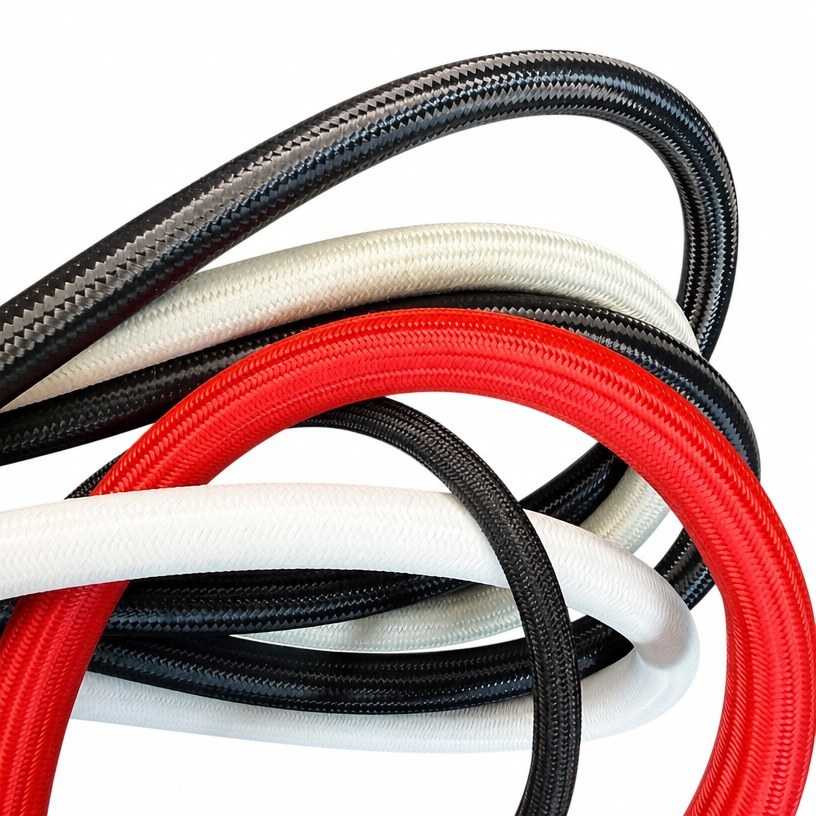

NBR Braided Rubber Hose - High Pressure Oil Resistant Flexible Tubing OEM/ODM

Product Overview

Our NBR braided rubber hose is engineered with a high-tensile polyester/nylon fiber braid embedded between inner NBR tube and outer NBR cover, delivering excellent pressure resistance, kink recovery, and oil/fuel resistance. It is the industry-standard solution for hydraulic lines, fuel delivery, lubricant transfer, oil cooling, and air brake systems. As a direct factory with extrusion + braiding + vulcanization under one roof, we offer full OEM/ODM service: custom inner diameter (3 mm – 50 mm), wall thickness, working pressure rating, color, and private-label packaging.

Key Features & Advantages

• High-pressure resistance up to 20 bar (290 psi) for standard series, 30+ bar for high-pressure series
• Excellent oil, fuel, diesel, kerosene, and lubricant resistance — NBR core resists swelling and degradation
• Wide working temperature range: -30°C to +120°C (custom high-temp up to 150°C available)
• Kink-resistant and flexible — fiber braid keeps inner lumen open under tight bend radius
• Aging, ozone, and abrasion-resistant outer cover for long service life
• Low permeation, low odor, RoHS/REACH compliant compounds available
• Custom colors: black, white, red, blue, green, yellow, silver, beige, and bespoke pantone
• Direct factory pricing with full OEM/ODM: custom ID/OD, length, printing, packaging

Technical Specifications

Material & Color Options

Standard material: NBR (Nitrile Butadiene Rubber) inner tube + polyester/nylon fiber braid reinforcement + NBR cover. Custom colors and hardness available on request.

Typical Applications

• Automotive fuel lines (petrol / diesel / E85) and oil return lines
• Hydraulic fluid transfer in low-medium pressure systems
• Lubricant / grease delivery in machinery and automation
• Air brake and pneumatic control lines in trucks and buses
• Oil cooling lines for engines, gearboxes, and power steering
• Industrial coolant / cutting fluid transfer
• Marine fuel systems and bilge pump discharge

Packaging & Delivery

Standard export packaging: PP/PE film wrapping + woven bag + carton. Custom packaging with private label, barcodes, and retail-ready boxes available on request. Inner diameter 3 mm–50 mm supplied in 20–100 m rolls; bulk reels and pre-cut lengths also available.
